Neutrik Bantam Phoneplug rood

Beschrijving

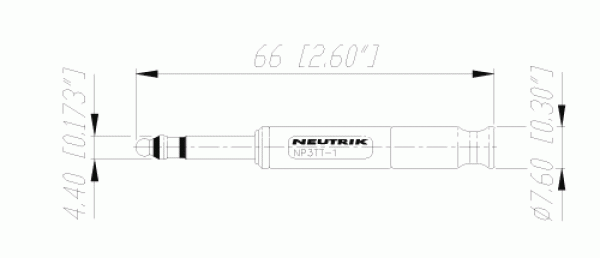

4.4 mm Bantam plug, solder termination for T+ R, crimp termination for S, red plastic housing, nickel contacts.

4.4 mm (0.173″) tiny telefone plug bantam type featuring 3 conductors and HEX crimp cable strain relief. Ideal use with TT patch panels.

Features & Benefits:
– Designed for pro audio applications
– Robust egonomic design – long-lasting and depenable
– Standard HEX crimp cable clamp for shield termination and cable retention
– Colored sleeves available for coding and marking

Specificaties

– Connector Type Plug
– Gender male
– Contact resistance depends on mating connector mO
– Dielectric strength 1 kVdc
– Insulation resistance > 2 GO (initial)
– Insulation resistance = 1 GO (after damp heat test)
– Rated current per contact depends on mating connector A
– Rated voltage 50 V
– Cable O.D. 4 – 4.8 mm
– Crimp size 5 Hex crimp (shield)
– Lifetime > 1000 mating cycles
– Wire size 0,25 mm
– Wire size 24 AWG
– Wiring Solder contacts
– Bushing Polyacetal (POM) + PU
– Contact plating 2 um Ni (Su)
– Contacts Brass (CuZn39Pb3)
– Contacts Bronze (CuSn6) (Tip)
– Insert Polyamide (PA 6.6 30 % GR)
– Shell Brass (CuZn39Pb3)
– Shell plating 2 um Ni (Su) + PA 6 30% GR (red)
– Standard compliance MIL-P-642/13
– Solderability Complies with IEC 68-2-20
– Temperature range -20C to +65C
