Beschrijving

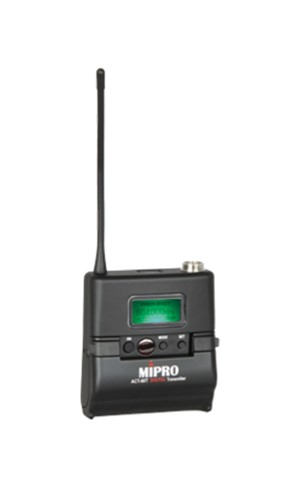

Ultra slim bodypack transmitter with sturdy magnesium alloy housing.
Features:

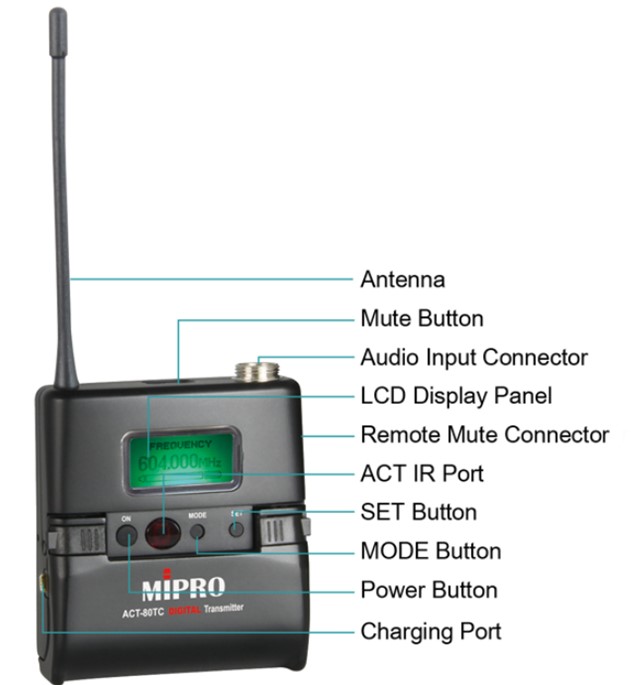

– on the top features mute switch, mini-XLR connector and antenna
– backlit LCD displays all operational parameter information
– innovatively designed battery cover
– allows easy access to operate buttons and prevents accidental operation
– mute button with remote-control jack for easy activation of mute function
– stable PLL circuit
– automatically synchronized with receiver by Mipro’s patented ACT function
– selection of polarization for audio to match capsules of different polarizations
– six selectable gain settings
– mini-XLR input with secure screw lock connector for lavaliere/headworn mics & guitar
– adjustable belt clip allows wearing transmitter in up or down position
– high-efficiency circuitry design
– the single rechargeable lithium battery can be easily removed or interchanged
– intelligent battery charger maintains a high charge capacity til 600 charge cycles
Specificaties
Frequency Range:
– 482 – 554MHz （US & EU）
– 540 – 604MHz (US & EU)
– 636 – 700MHz (EU)
– 696 – 760MHz (EU)
– 760 – 824MHz
– bandwidth 64 MHz
– oscillation Mode PLL Synthesized
– channel Set-Up ACT Sync
– RF Output Power 10 mW / 50 mW switchable (country dependent)
– spurious Emissions < -60dBc
– modulation type new digital modulation
– audio compression DSP inertial coding
– LCD display group, channel, frequency, AF gain, low-cut, limiter
– encryption status, RF power, phase, lock status, mute mode
– battery status & error codes
– gain setting +18 dB, +12 dB, +6 dB, 0 dB, -6 dB, -12dB (6 settings)
– 0 dB = microphone sensitivity
– mute connector optional MJ-70 remote mute switch
– capsules Headworn: MU-13 / MU-23 / MU-210 / MU-53HN / MU-55HN
– battery type 1x ICR 18500 rechargeable lithium battery
– current consumption High Power: approx. 125mA; Low Power: approx. 100mA
– dimensions 63 x 70 x 25 mm (W x H x D)
– weight approx. 73 gr excluding batteries
Notes:
Refer to actual product in the event of product description discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.
